Description
ZLINE 36" Stainless Steel Outdoor Wall Range Hood, KB-304-36
OPTIONS & ACCESSORIES
Ductless/Recirculate Option - Yes requires CF1 filters
Ceiling Heights Options:
Less 8’ - require Short Kit SK-KB/KL2/KL3-304
8’ to 9' - No Ext or Short Kit required
9' to 10’ - require Ext 1PCEXT-KB/KL2/KL3-304
10' to 12’ - require Ext 2PCEXT-KB/KL2/KL3-304
Crown Molding(s) - Available for purchase (sold separately):
CM1-KB/KL2/KL3
CM2-KB/KL2/KL3
CM3-KB/KL2/KL3
CM4-KB/KL2/KL3
CM5-KB/KL2/KL3
CM6-KB/KL2/KL3
Certified Outdoor Use - Yes
Available in - 30"(KB-304-30), 42"(KB-304-42), 48"(KB-304-48)
PRODUCT DESCRIPTION:
Purchasing an outdoor range hood comes with a different set of recommendations than indoor range hoods:
• Always install your outdoor range hood at least 36" above your outdoor range or grill
• If purchasing a 400 CFM range hood, your hood should be at least 2 sizes larger than your grill
• If purchasing a 760 or 700 CFM range hood, your hood should be at least 1 size larger than your grill
• It is not recommended to use a recirculating range hood, you should always duct away from your cooking area

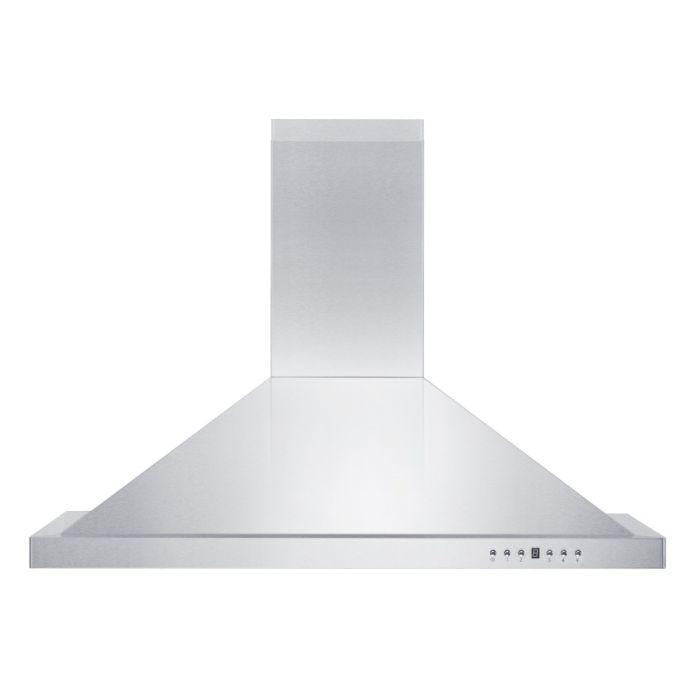

The ZLINE KB-304-36 is a 36-inch outdoor professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade, outdoor approved stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Outdoor approved, 304-grade stainless steel

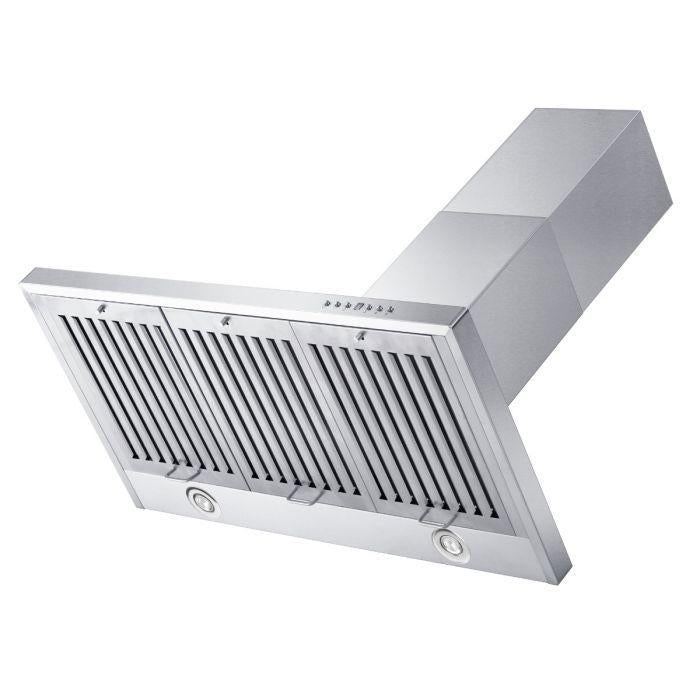

- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- High performance 4-speed motor with speeds up to 400 CFM
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-304-36 ships next business day when in stock.
PRODUCT SPECIFICATIONS:
| Brand: | ZLINE Kitchen and Bath |
| Dimensions: | 36" W x 19.7" D x 10.5" H |
| Chimney (Dimension): | 9.2" W x 8" D x 16" H (x2) (Telescoping) |
| Chimney Short Kit and Extension(s) Available: |
Short Kit (2-12") ~7-8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings |
| Venting Size: | 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option. |
| Airflow (Q/L/M/H): | 120/240/320/400 (CFM) |
| Lighting: | 2 Directional LED Lights (3-Watt) |
| Noise Level: | 20/29/34/41 (Decibels) |
| Voltage: | 110V/60HZ |
| Motor: | 400 CFM Motor (Four speed) |
| Mount Type: | Wall Mounted - Recommended mounting height over a grill is 36" to 40" |
| Speeds: | 4 speeds |
| Control Type: | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Filters: | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Material: | 19g #304 Stainless Steel |
| Warranty: | 3 Year Parts Warranty |
| Features: | Model No. KB-304-36 (ETL Listed) |
| UPC: | 814118023765 |
| Certifications: | ETL Certified |
