Description

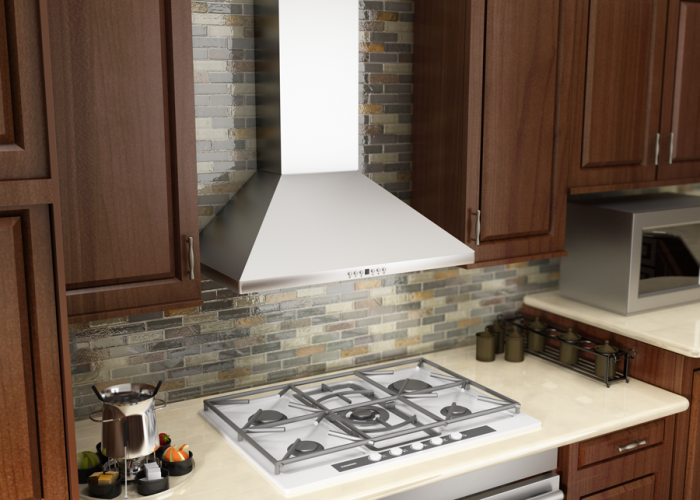

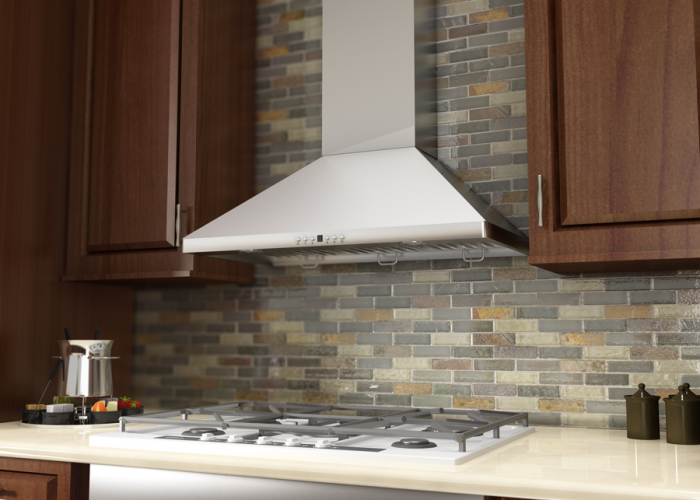

ZLINE 30" Stainless Steel Indoor Wall Range Hood KF1-30
OPTIONS & ACCESSORIES
Ductless/Recirculate Option - Yes requires CF1 filters
Ceiling Heights Options:
Less 8’ - require Short Kit SK-KF1
8’ to 9' - No Ext or Short Kit required
9' to 10’ - require Ext 1PCEXT-KF1
10' to 12’ - require Ext 2PCEXT-KF1
Crown Molding(s) - NA
Certified Outdoor Use - No
Available in - 36"(KF1-36)
PRODUCT DESCRIPTION:
The ZLINE KF1-30 is a 30-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- High performance 4-speed motor with speeds up to 400 CFM
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KF1-30 ships next business day when in stock.
PRODUCT SPECIFICATIONS:
| Dimensions: | 30" W x 20.5" D x 12.2" H |
| Chimney (Dimension): | 10.6" W x 8" D x 16" H (x2) (Telescoping) |
| Chimney Short Kit and Extension(s) Available: |
Short Kit (2-12") ~7.5-8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings |
| Venting Size: | 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option. |
| Airflow (Q/L/M/H): | 120/240/320/400 (CFM) |
| Lighting: | 2 Directional LED Lights (3-Watt) |
| Noise Level: | 20/29/34/41 (Decibels) |
| Voltage: | 110V/60HZ |
| Motor: | High Performance 400 CFM/4-Speed Motor |
| Mount Type: | Wall Mounted |
| Speeds: | 4 speeds |
| Control Type: | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Filters: | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Material: | 21g #430 Stainless Steel |
| Warranty: | 3 Year Parts Warranty |
| Features: | Manufactured by ZLINE Kitchen & Bath Model No. KF1-30 (ETL Listed) |
| UPC: | 855187005481 |
| Certifications: | ETL and UL Listed |
