ZLINE 36" Outdoor Stainless Steel Wall Range Hood, 697-304-36

OPTIONS & ACCESSORIES

Ductless/Recirculate Option - No
Ceiling Heights Options:
Less 8’ - Require Short Kit SK-667/697-304
8’ to 9' - No Ext or Short Kit required
9' to 10’ - Require Ext 1PCEXT-667/697-304
10' to 12’ - Require Ext 2PCEXT-667/697-304
Crown Molding(s) - NA
Certified Outdoor Use - Yes
Also available in 30"(697-304-30), 42"(697-304-42), 48”(697-304-48). 54"(697-304-54), 60"(697-304-60)

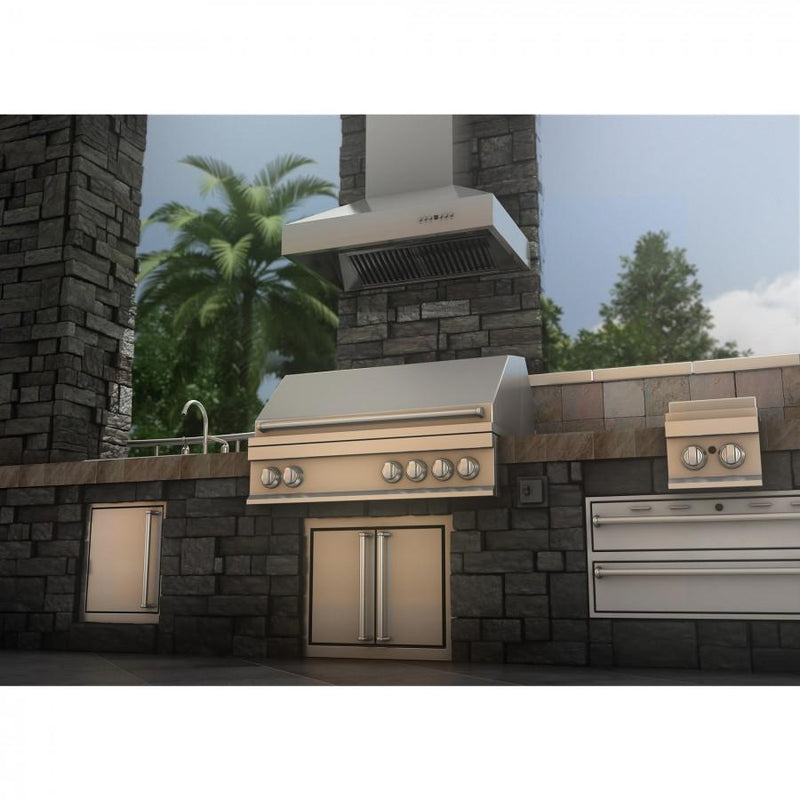

Purchasing an outdoor range hood comes with a different set of recommendations than indoor range hoods:

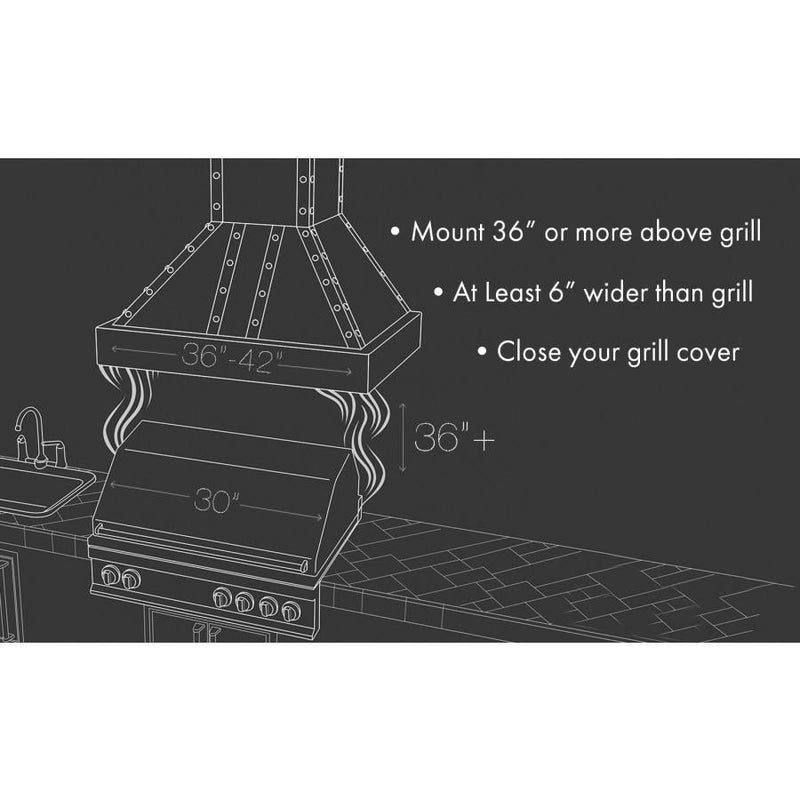

• Always install your outdoor range hood at least 36" above your outdoor range or grill
• If purchasing a 760 CFM range hood, your hood should be at least 2 sizes larger than your grill
• If purchasing a 900 or 700 CFM range hood, your hood should be at least 1 size larger than your grill
• It is not recommended to use a recirculating range hood, you should always duct away from your cooking area

PRODUCT DESCRIPTION:

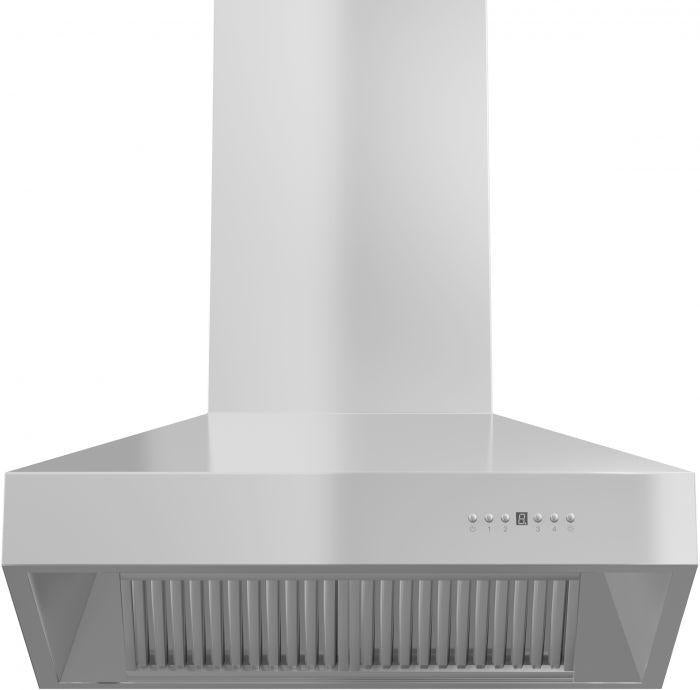

The ZLINE 697-304-36 is a 36-inch outdoor professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade, outdoor approved stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

PRODUCT SPECIFICATIONS:

Brand:	ZLINE Kitchen and Bath
Dimension:	36" W x 27.5" D x 16.375" H
Chimney (Dimension):	13.5" W x 11.75" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~7-8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
Venting Size:	8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H):	280/460/670/700 (CFM)
Lighting:	2 Directional LED Lights (3-Watt)
Noise Level:	30/42/51/56 (Decibels)
Voltage:	110V/60HZ
Motor:	High Performance 700 CFM/4-Speed Dual Motor
Mount Type:	Wall Mount - RECOMMENDED INSTALLATION 36"-40" ABOVE GRILL
Speeds:	4 speeds
Control Type:	Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters:	Stainless Steel Baffle Filters (Dishwasher Safe)
Material:	19g #304 Stainless Steel
Warranty:	3 Year Parts Warranty
Features:	Model No. 697-304-36 (ETL Listed)
UPC:	855187005825
Certifications:	ETL Certified

INSTALLATION INSTRUCTIONS

Range Hood Decibel Levels:

ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation.

Chimney Sizing:

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
