Description

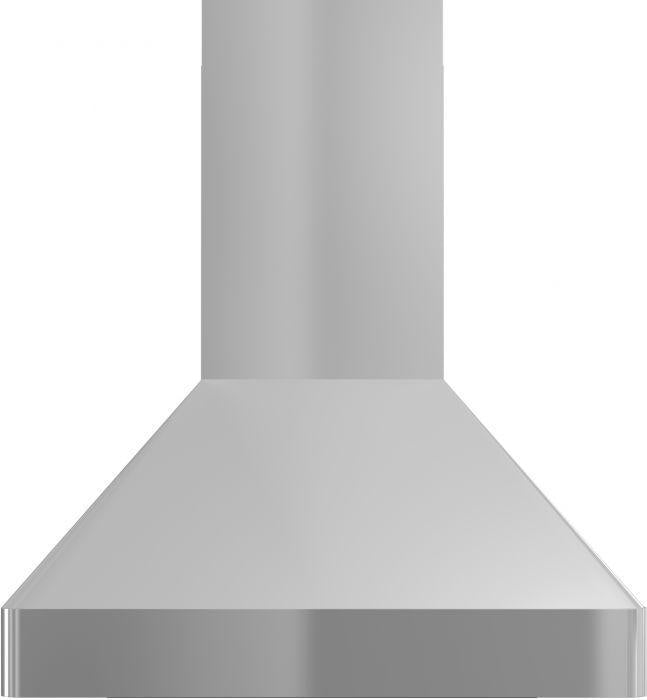

ZLINE 36" Stainless Steel Wall Range Hood, 9667-36
OPTIONS & ACCESSORIES
Ductless/Recirculate Option - Yes requires CF1 filters
Ceiling Heights Options:
Less 8’ - require Short Kit SK-9667/9697
8’ to 9' - No Ext or Short Kit required
9' to 10’ - require Ext 1PCEXT-9667/9697
10' to 12’ - require Ext 2PCEXT-9667/9697
Crown Molding(s) - NA
Certified Outdoor Use - No
Available in - 30"(9667-30)
PRODUCT DESCRIPTION:
The ZLINE 9667-36 is a 36-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• High performance 4-speed motor with speeds up to 700 CFM
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 9667-36 ships next business day when in stock.
PRODUCT SPECIFICATIONS:
| Brand: | ZLINE Kitchen and Bath |
| Dimension: |

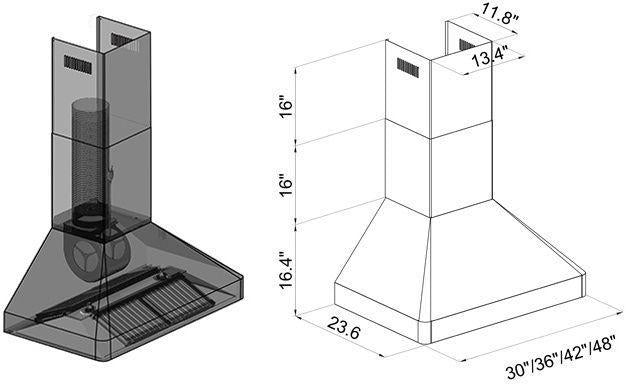

36" W x 24" D x 16.375" H - Rounded Edges/Corners
|
| Chimney (Dimension): |
13.5" W x 11.75" D x 16" H (x2) (Telescoping)
|
| Venting Size: |
8" Outlet (Transition piece to round ducting included) |
| Airflow (Q/L/M/H): | 280/460/670/700 (CFM) |
| Lighting: | 2 Directional LED Lights (3-Watt) |
| Noise Level: | 30/41/49/56 (Decibels) |
| Voltage: | 110V/60HZ |
| Motor: | High Performance 700 CFM/4-Speed Dual Motor |
| Mount Type: | Wall Mounted |
| Speeds: | 4 Speeds |
| Control Type: |
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
|
| Filters: |
Stainless Steel Baffle Filters (Dishwasher Safe)
|
| Material: | 21g #430 Stainless Steel |
| Warranty: | 3 Year Parts Warranty |
| Features: | Model No. 9667-36 (ETL Listed) |
| UPC: | 814118020146 |
|
Certifications:
|
ETL Certified |
INSTALLATION INSTRUCTIONS
Range Hood Decibel Levels:
