Description
ZLINE 48" Remote Dual Blower Stainless Wall Range Hood, 697-RD-48
OPTIONS & ACCESSORIES
Ductless/Recirculate Option - NA
Ceiling Heights Options:
Less 8’ - Require Short Kit SK-455/476/477/667/697
8’ to 9' - No Ext or Short Kit required
9' to 10’ - Require Ext 1PCEXT-455/476/477/667/697
10' to 12’ - Require Ext 2PCEXT-455/476/477/667/697
Crown Molding(s) -
CM1-455/476/477/667/697
CM2-455/476/477/667/697
CM3-455/476/477/667/697
CM4-455/476/477/667/697
CM5-455/476/477/667/697
CM6-455/476/477/667/697
Certified Outdoor Use - No
Also available in 30"(697-RD-30), 36"(697-RD-36), 42"(697-RD-42)
PRODUCT DESCRIPTION:

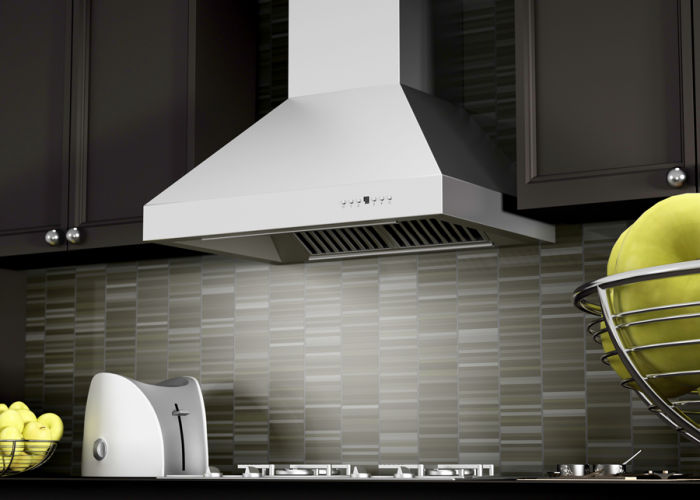

The ZLINE 697-RD-48 is a 48-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• High performance 4-speed motor with speeds up to 700 CFM
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 697-RD-48 ships next business day when in stock.
PRODUCT SPECIFICATIONS:
| Brand: | ZLINE Kitchen and Bath |
| Dimension: |
48" W x 27.5" D x 16.375" H
|
| Chimney (Dimension): |
13.5" W x 11.75" D x 16" H (x2) (Telescoping)
Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~7-8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings |
| Venting Size: |
8" Outlet (Transition piece to round ducting included) |
| Airflow (Q/L/M/H): |
T95 Dual Remote Blower 280/460/670/1200 (CFM)
|
| Lighting: | 4 Directional LED Lights (3-Watt) |
| Noise Level: |
30/42/51/56 (Decibels)
|
| Voltage: | 110V/60HZ |
| Motor: |
High Performance 700 CFM/4-Speed Dual Motor
|
| Mount Type: | Wall Mounted / Remotely Installed Blower |
| Speeds: | 4 speeds |
| Control Type: |
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
|
| Filters: |
Stainless Steel Baffle Filters (Dishwasher Safe)
|
| Material: | 21g #430 Stainless Steel |
| Warranty: | 3 Year Parts Warranty |
| Features: |
Model No. 697-RD-48 (ETL Listed) ***CROWN MOLDING AVAILABLE FOR THIS MODEL*** |
| UPC: | 814118021679 |
| Certifications: | ETL Certified |
INSTALLATION INSTRUCTIONS
Range Hood Decibel Levels:
Chimney Sizing:
