ZLINE 48" Stainless Steel Indoor Wall Range Hood, 697-48

OPTIONS & ACCESSORIES

Ductless/Recirculate Option - No
Ceiling Heights Options:
Less 8’ - Require Short Kit SK-455/476/477/667/697
8’ to 9' - No Ext or Short Kit required
9' to 10’ - Require Ext 1PCEXT-455/476/477/667/697
10' to 12’ - Require Ext 2PCEXT-455/476/477/667/697
Crown Molding(s) - Available for purchase (sold separately):
CM1-455/476/477/667/697
CM2-455/476/477/667/697
CM3-455/476/477/667/697
CM4-455/476/477/667/697
CM5-455/476/477/667/697
CM6-455/476/477/667/697
Certified Outdoor Use - No
Also available in 30"(697-30), 36"(697-36), 42"(697-42), 54"(697-54) and 60"(697-60)

PRODUCT DESCRIPTION:

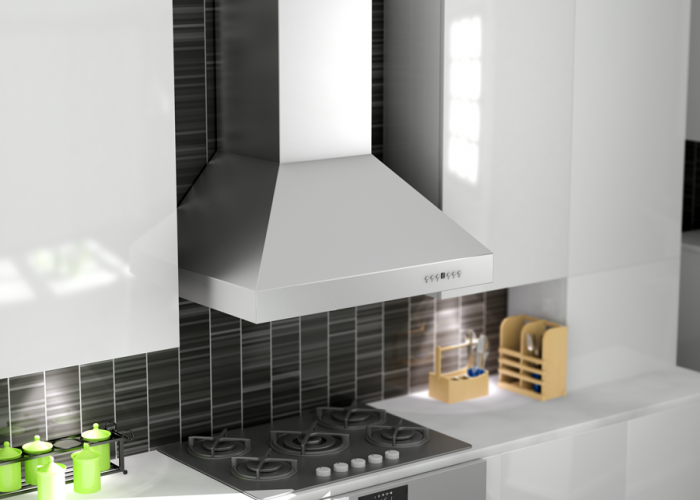

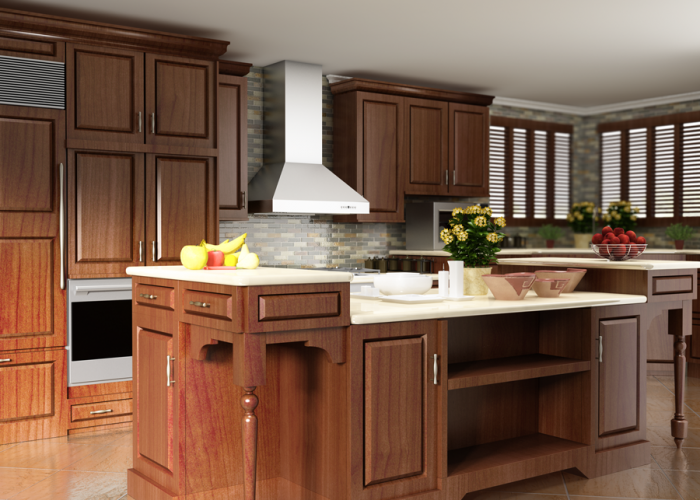

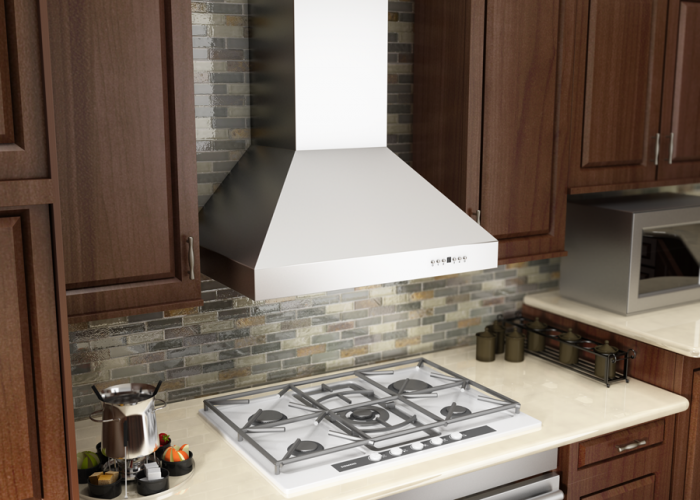

The ZLINE 697-48 is a 48-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:
• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• High performance 4-speed motor with speeds up to 700 CFM

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 697-48 ships next business day when in stock.

PRODUCT SPECIFICATIONS:

Brand:	ZLINE Kitchen and Bath
Dimension:	48" W x 27.5" D x 16.375" H
Chimney (Dimension):	13.5" W x 11.75" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~7-8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
Venting Size:	8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H):	280/460/670/700 (CFM)
Lighting:	4 Directional LED Lights (3-Watt)
Noise Level:	30/42/51/56 (Decibels)
Voltage:	110V/60HZ
Motor:	High Performance 700 CFM/4-Speed Motor
Mount Type:	Wall Mounted
Speeds:	4 speeds
Control Type:	Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters:	Stainless Steel Baffle Filters (Dishwasher Safe)
Material:	21g #430 Stainless Steel
Warranty:	3 Year Parts Warranty
Features:	Model No. 697-48 (ETL Listed)
UPC:	855187005320
Certifications:	ETL Certified

Range Hood Decibel Levels:

ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you’re helping with homework.

Chimney Sizing:

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
